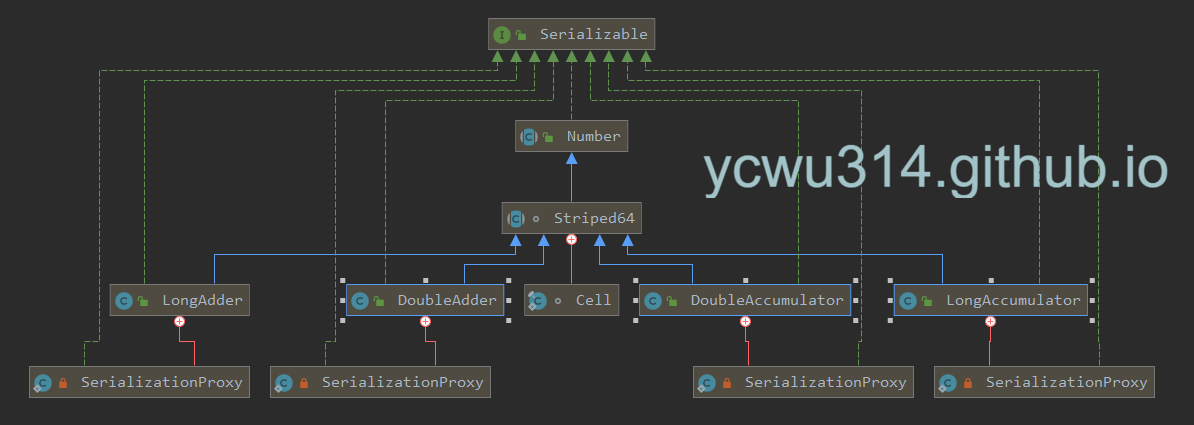

Striped64是Java8新增的、64bit高性能累加器。Striped64是LongAdder、LongAccumulator等类的基类。ConcurrentHashMap的计数就使用了Striped64和LongAdder的设计。
Striped64 初探
Striped64是个抽象类，为子类提供工具方法支持。 Striped64有3个核心变量，都是volatile修饰：
- base：计数字段
- cells：是一个Cell数组。使用lazy init方式。第一次访问时候初始化。
- cellsBusy：用于自旋锁，表明cells数组正在初始化或者扩容。0表示无cells竞争，1表示有线程在操作cells。
abstract class Striped64 extends Number {
/**
* Table of cells. When non-null, size is a power of 2.
*/
transient volatile Cell[] cells;
/**
* Base value, used mainly when there is no contention, but also as
* a fallback during table initialization races. Updated via CAS.
*/
transient volatile long base;
/**
* Spinlock (locked via CAS) used when resizing and/or creating Cells.
*/
transient volatile int cellsBusy;
}
Striped64设计思路：
- 优先把计数更新到cells数组。
- 每次遇到竞争，则扩容为2倍，直到等于cpu核数，或者比cpu核数大的、最小的2的整数幂。使用cellsBusy自旋锁。
- 最后才尝试CAS更新base
Striped64 Cell
@sun.misc.Contended static final class Cell {
volatile long value;
Cell核心是一个long容器。注意被Contended注解修饰。在Java 8中，提供了@sun.misc.Contended注解来避免缓存伪共享。具体可以看看：
cells数组扩容是有限制的。原因是使用随机探针方式试探cells的冲突，只有CAS失败才知道。更大的cells会影响收敛时间。 cells数组不考虑回收问题，因为在常时间运行、高并发环境，这些cells最终会有机会使用。
/*
* The table size is capped because, when there are more threads
* than CPUs, supposing that each thread were bound to a CPU,
* there would exist a perfect hash function mapping threads to
* slots that eliminates collisions. When we reach capacity, we
* search for this mapping by randomly varying the hash codes of
* colliding threads. Because search is random, and collisions
* only become known via CAS failures, convergence can be slow,
* and because threads are typically not bound to CPUS forever,
* may not occur at all. However, despite these limitations,
* observed contention rates are typically low in these cases.
*
* It is possible for a Cell to become unused when threads that
* once hashed to it terminate, as well as in the case where
* doubling the table causes no thread to hash to it under
* expanded mask. We do not try to detect or remove such cells,
* under the assumption that for long-running instances, observed
* contention levels will recur, so the cells will eventually be
* needed again; and for short-lived ones, it does not matter.
*/
Striped64 PROBE / threadLocalRandomProbe
发生竞争时候，使用cells数组存储计数。那么有个问题，选择cells的哪个位置存储呢？答案是Thread类的threadLocalRandomProbe变量。 Thread.java
/** Probe hash value; nonzero if threadLocalRandomSeed initialized */
@sun.misc.Contended("tlr")
int threadLocalRandomProbe;
Striped64使用unsafe操作Thread类的threadLocalRandomProbe变量
private static final long PROBE;
static {
try {
// more code
Class<?> tk = Thread.class;
PROBE = UNSAFE.objectFieldOffset
(tk.getDeclaredField("threadLocalRandomProbe"));
}
每次计算PROBE的位置，都使用ThreadLocalRandom的伪随机算法。
/**
* Pseudo-randomly advances and records the given probe value for the
* given thread.
* Duplicated from ThreadLocalRandom because of packaging restrictions.
*/
static final int advanceProbe(int probe) {
probe ^= probe << 13; // xorshift
probe ^= probe >>> 17;
probe ^= probe << 5;
UNSAFE.putInt(Thread.currentThread(), PROBE, probe);
return probe;
}
// 返回当前线程的probe值
static final int getProbe() {
return UNSAFE.getInt(Thread.currentThread(), PROBE);
}
Striped64 longAccumulate 详解
有了前面的准备分析，可以深入了解Striped64实现。 Striped64提供了longAccumulate和doubleAccumulate两个工具方法（因为long和double是64bit）。这里研究longAccumulate。
final void longAccumulate(long x, LongBinaryOperator fn,
boolean wasUncontended)
其中：
- x：要更新的值。
- fn：更新函数。null则直接增加x。为LongAdder提供支持。
- wasUncontended：无冲突标记。如果调用之前CAS操作失败，则为false。
如果当前线程的probe为0，则未初始化，初始化之，并且更新wasUncontended。
int h;
if ((h = getProbe()) == 0) {
ThreadLocalRandom.current(); // force initialization
h = getProbe();
// 没有冲突
wasUncontended = true;
}
ThreadLocalRandom.current初始化当前线程的探针：
public static ThreadLocalRandom current() {
if (UNSAFE.getInt(Thread.currentThread(), PROBE) == 0)
localInit();
return instance;
}
接下来是重头戏，在循环中更新计数。if-else分支很多，直接在代码上做解析：
for (;;) {
Cell[] as; Cell a; int n; long v;
// 如果有cells数组可用
if ((as = cells) != null && (n = as.length) > 0) {
// 当前线程哈希到cells数组，且未被使用，则尝试新建一个cell（lazy init）
if ((a = as[(n - 1) & h]) == null) {
// 尝试乐观锁方式更新
if (cellsBusy == 0) { // Try to attach new Cell
Cell r = new Cell(x); // Optimistically create
// 再次检查cellsBusy，尝试cas更新
if (cellsBusy == 0 && casCellsBusy()) {
boolean created = false;
try { // Recheck under lock
Cell[] rs; int m, j;
if ((rs = cells) != null &&
(m = rs.length) > 0 &&
rs[j = (m - 1) & h] == null) {
rs[j] = r;
created = true;
}
} finally {
// 释放自旋锁
cellsBusy = 0;
}
if (created)
break;
continue; // Slot is now non-empty
}
}
collide = false;
}
// 已经有cell存在，如果之前是没有竞争，就要更新为有竞争，且在下一次循环继续
else if (!wasUncontended) // CAS already known to fail
wasUncontended = true; // Continue after rehash
// 既然有cell，尝试在该cell cas更新计数，如果成功则跳出循环
else if (a.cas(v = a.value, ((fn == null) ? v + x :
fn.applyAsLong(v, x))))
break;
// CAS更新该cell失败了，有竞争
// 如果cells数组长度到达最大值，或者已经改变，则进入下一轮循环的初始状态是没有冲突（是下一轮！）
else if (n >= NCPU || cells != as)
collide = false; // At max size or stale
// 如果之前检查没有冲突，则在进入下一轮循环的初始状态是有冲突
else if (!collide)
collide = true;
// 到达这个分支的条件：cells有竞争，且容量未到最大值
// 尝试获取乐观锁，并对cells扩容
else if (cellsBusy == 0 && casCellsBusy()) {
try {
if (cells == as) { // Expand table unless stale
Cell[] rs = new Cell[n << 1];
for (int i = 0; i < n; ++i)
rs[i] = as[i];
cells = rs;
}
} finally {
cellsBusy = 0;
}
collide = false;
continue; // Retry with expanded table
}
// 进入下一轮循环之前，更新探针
h = advanceProbe(h);
}
// cells数组未初始化。进行lazy init
else if (cellsBusy == 0 && cells == as && casCellsBusy()) {
boolean init = false;
try { // Initialize table
if (cells == as) {
Cell[] rs = new Cell[2];
rs[h & 1] = new Cell(x);
cells = rs;
init = true;
}
} finally {
cellsBusy = 0;
}
if (init)
break;
}
// 进入此分支的条件：
// 1. cells数组为null
// 2. 无法初始化cells数组
// 则尝试CAS更新base变量
else if (casBase(v = base, ((fn == null) ? v + x :
fn.applyAsLong(v, x))))
break; // Fall back on using base
}
Striped64 总结
Striped64的核心思路是，尽量使用分段锁，提高并发度。只有在fallback情况才更新base计数器，并且是CAS方式。 Cell数组使用@Contended注解，避免缓存伪共享。
