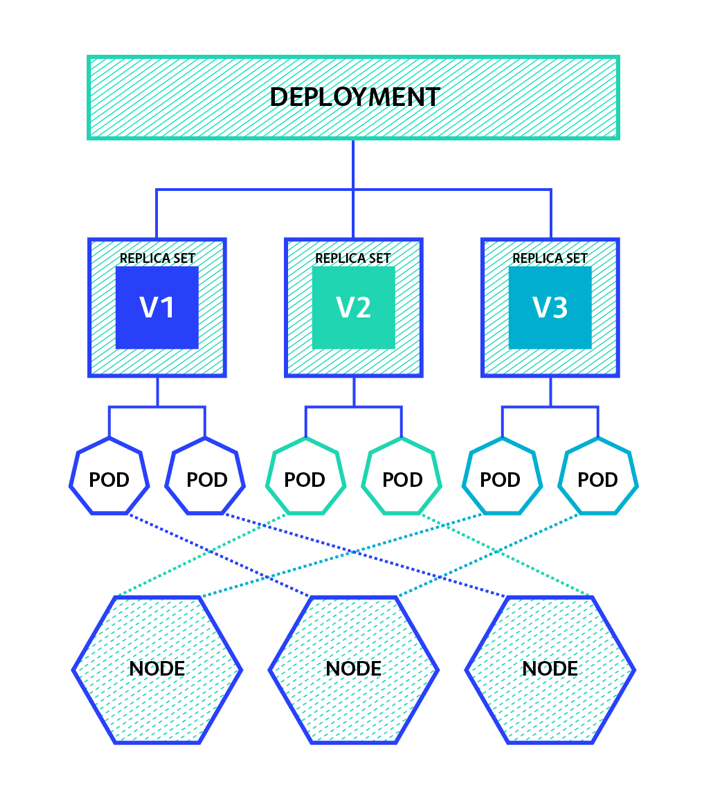

A Kubernetes Deployment managed ReplicaSet. Each one represents a different version of the deployed application. Each ReplicaSet manages a set of identically versioned Pods.
(图片来源：www.weave.works)
小实验
通过一个实验来加深理解。tomcat.yml配置如下：
apiVersion: apps/v1
kind: Deployment
metadata:
name: mytomcat
spec:
selector:
matchLabels:
app: tomcat
replicas: 2
template:
metadata:
labels:
app: tomcat
spec:
containers:
- name: tomcat
image: tomcat
ports:
- containerPort: 8080
然后执行kubectl create -f tomcat.yml。
Pod
Pod是kubernetes中最基本的应用执行单元。代表一个在k8s集群运行的进程。 当Pod被创建后，都会被Kubernetes调度到集群的Node上。 通常不会直接使用Pod，而是通过controller操作。
# kubectl get pod
NAME READY STATUS RESTARTS AGE
mytomcat-78c89857d6-428gg 1/1 Running 0 7h54m
mytomcat-78c89857d6-rxx8v 1/1 Running 0 7h38m
# kubectl describe pod mytomcat-78c89857d6-428gg
Name: mytomcat-78c89857d6-428gg
Namespace: default
Priority: 0
Node: izwz9h8m2chowowqckbcy0z/172.18.151.35
Start Time: Mon, 30 Sep 2019 13:32:05 +0800
Labels: app=tomcat
pod-template-hash=78c89857d6
Annotations: <none>
Status: Running
IP: 10.1.1.12
IPs:
IP: 10.1.1.12
Controlled By: ReplicaSet/mytomcat-78c89857d6
Controlled By字段表明由ReplicaSet管理pod。
另外，Deployment controller会自动为Pod添加pod-template-hash label。这样做的目的是防止Deployment的子ReplicaSet的pod名字重复。
ReplicaSet
A ReplicaSet then fulfills its purpose by creating and deleting Pods as needed to reach the desired number.
# kubectl describe rs mytomcat-78c89857d6
Name: mytomcat-78c89857d6
Namespace: default
Selector: app=tomcat,pod-template-hash=78c89857d6
Labels: app=tomcat
pod-template-hash=78c89857d6
Annotations: deployment.kubernetes.io/desired-replicas: 2
deployment.kubernetes.io/max-replicas: 3
deployment.kubernetes.io/revision: 1
Controlled By: Deployment/mytomcat
Replicas: 2 current / 2 desired
Pods Status: 2 Running / 0 Waiting / 0 Succeeded / 0 Failed
Pod Template:
Labels: app=tomcat
pod-template-hash=78c89857d6
Containers:
tomcat:
Image: tomcat
Port: 8080/TCP
Host Port: 0/TCP
Environment: <none>
Mounts: <none>
Volumes: <none>
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal SuccessfulCreate 26m replicaset-controller Created pod: mytomcat-78c89857d6-428gg
Normal SuccessfulCreate 26m replicaset-controller Created pod: mytomcat-78c89857d6-k5nh6
Normal SuccessfulDelete 10m replicaset-controller Deleted pod: mytomcat-78c89857d6-k5nh6
Normal SuccessfulCreate 9m54s replicaset-controller Created pod: mytomcat-78c89857d6-rxx8v
Deployment
Deployment为Pod和Replica Set（下一代Replication Controller）提供声明式更新。
# kubectl describe deployment mytomcat
Name: mytomcat
Namespace: default
CreationTimestamp: Mon, 30 Sep 2019 13:32:04 +0800
Labels: <none>
Annotations: deployment.kubernetes.io/revision: 1
Selector: app=tomcat
Replicas: 2 desired | 2 updated | 2 total | 2 available | 0 unavailable
StrategyType: RollingUpdate
MinReadySeconds: 0
RollingUpdateStrategy: 25% max unavailable, 25% max surge
Pod Template:
Labels: app=tomcat
Containers:
tomcat:
Image: tomcat
Port: 8080/TCP
Host Port: 0/TCP
Environment: <none>
Mounts: <none>
Volumes: <none>
Conditions:
Type Status Reason
---- ------ ------
Progressing True NewReplicaSetAvailable
Available True MinimumReplicasAvailable
OldReplicaSets: <none>
NewReplicaSet: mytomcat-78c89857d6 (2/2 replicas created)
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal ScalingReplicaSet 11m deployment-controller Scaled down replica set mytomcat-78c89857d6 to 1
Normal ScalingReplicaSet 11m (x2 over 27m) deployment-controller Scaled up replica set mytomcat-78c89857d6 to 2
Deployment操作ReplicationSet来调节pod数量到指定的replicas（见OldReplicaSets、NewReplicaSet）。
Service
一个服务后端的Pods可能会随着生存灭亡而发生IP的改变，service的出现，给服务提供了一个固定的IP，而无视后端Endpoint的变化。 Service定义了这样一种抽象：逻辑上的一组Pod，一种可以访问它们的策略 —— 通常称为微服务。
service涉及port、nodePort、targetPort概念，容易混淆。
port
Expose the service on the specified port internally within the cluster.
<cluster ip>:port是集群内部客户访问service的入口。
service中对应spec.type为ClusterIP。
nodePort
This setting makes the service visible outside the Kubernetes cluster by the node’s IP address and the port number declared in this property.
<nodeIP>:nodePort是集群外部客户访问service的一种入口（另一个种是loadbalance）。
service中对应spec.type为NodePort。
端口范围只能是 30000-32767。
targetPort
This is the port on the pod that the request gets sent to. Your application needs to be listening for network requests on this port for the service to work.
容器的端口。外部流量经过port、nodePort最终流向targetPort。
关联pod和service
service通过selector和pod建立关联。 k8s会根据service关联到pod的podIP信息组合成一个endpoint。
tomcat-svc.yml内容如下：
apiVersion: v1
kind: Service
metadata:
name: mytomcat-svc
spec:
selector:
app: tomcat
type: NodePort
ports:
- name: http
port: 8080
targetPort: 8080
protocol: TCP
执行kubectl creat -f tomcat-svc.yml。
Endpoints字段指向pod。
# kubectl describe service mytomcat-svc
Name: mytomcat-svc
Namespace: default
Labels: <none>
Annotations: <none>
Selector: app=tomcat
Type: NodePort
IP: 10.152.183.224
Port: http 8080/TCP
TargetPort: 8080/TCP
NodePort: http 31672/TCP
Endpoints: 10.1.1.12:8080,10.1.1.13:8080
Session Affinity: None
External Traffic Policy: Cluster
Events: <none>
servcie和端口的常见问题
为了能够在kubernetes外面访问到service，会暴露nodePort。一个常见的问题是，只在service的yaml文件设置了spec.ports.nodePort，没有更新spec.type为NodePort（默认为ClusterIP），导致出现下面报错：
The Service “nacos-headless” is invalid: spec.ports[0].nodePort: Forbidden: may not be used when type is 'ClusterIP'
小结
- 使用Deployment来创建ReplicaSet，ReplicaSet在后台创建pod。
- port和nodePort都是service的端口，前者暴露给集群内客户访问服务，后者暴露给集群外客户访问服务。从这两个端口到来的数据都需要经过反向代理kube-proxy流入后端pod的targetPod，从而到达pod上的容器内。
- service通过selector关联pod。
