背景

项目使用mybatis generator生成entity、mapper类。拷贝祖传配置，执行后发现没有生成xxxSelective方法，很不习惯。一开始以为是table没有指定相应selective方法，于是打开mybatis generator的dtd文件，发现并没有关于生成selective的选项：

<!ATTLIST table
  catalog CDATA #IMPLIED
  schema CDATA #IMPLIED
  tableName CDATA #REQUIRED
  alias CDATA #IMPLIED
  domainObjectName CDATA #IMPLIED
  mapperName CDATA #IMPLIED
  sqlProviderName CDATA #IMPLIED
  enableInsert CDATA #IMPLIED
  enableSelectByPrimaryKey CDATA #IMPLIED
  enableSelectByExample CDATA #IMPLIED
  enableUpdateByPrimaryKey CDATA #IMPLIED
  enableDeleteByPrimaryKey CDATA #IMPLIED
  enableDeleteByExample CDATA #IMPLIED
  enableCountByExample CDATA #IMPLIED
  enableUpdateByExample CDATA #IMPLIED
  selectByPrimaryKeyQueryId CDATA #IMPLIED
  selectByExampleQueryId CDATA #IMPLIED
  modelType CDATA #IMPLIED
  escapeWildcards CDATA #IMPLIED
  delimitIdentifiers CDATA #IMPLIED
  delimitAllColumns CDATA #IMPLIED>

后来经同事指出是targetRuntime的不同引起的。这次项目的配置是

<context id="mysql"  targetRuntime="MyBatis3Simple" >

以前的配置是

<context id="mysql"  targetRuntime="MyBatis3" >

mybatis generator targetRuntime

IntrospectedTable定义了2种基本targetRuntime

public abstract class IntrospectedTable {

    public enum TargetRuntime {
        MYBATIS3,
        MYBATIS3_DSQL
    }
    // more code
}

MYBATIS3对应 IntrospectedTableMyBatis3Impl、 IntrospectedTableMyBatis3SimpleImpl。 MYBATIS3_DSQL对应IntrospectedTableMyBatis3DynamicSqlImplV1和V2(不是这次的讨论重点)。

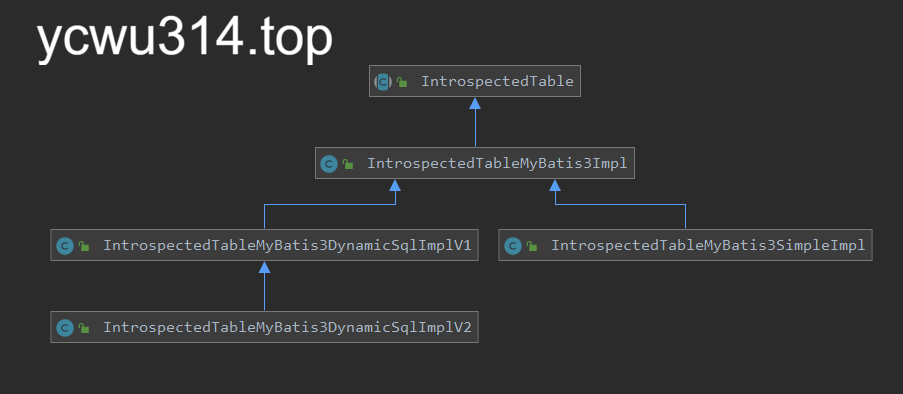

IntrospectedTableMyBatis3SimpleImpl继承于IntrospectedTableMyBatis3Impl。 IntrospectedTableMyBatis3Impl提供了createJavaClientGenerator() 默认实现，并且可以被子类覆盖，这是选择java代码生成器，生成不同的mapper方法。

![slug abstract-generator.png](slug abstract-generator.png)

AbstractJavaGenerator定义了getCompilationUnits()，获取要生成的模板单元（主要是各种mapper方法）

public abstract class AbstractJavaGenerator extends AbstractGenerator {
    public abstract List<CompilationUnit> getCompilationUnits();
}

接下来再看看不同targetRuntime选择的code generator。

IntrospectedTableMyBatis3Impl

    protected AbstractJavaClientGenerator createJavaClientGenerator() {
        if (context.getJavaClientGeneratorConfiguration() == null) {
            return null;
        }

        String type = context.getJavaClientGeneratorConfiguration()
                .getConfigurationType();

        AbstractJavaClientGenerator javaGenerator;
        if ("XMLMAPPER".equalsIgnoreCase(type)) { //$NON-NLS-1$
            javaGenerator = new JavaMapperGenerator(getClientProject());
        } else if ("MIXEDMAPPER".equalsIgnoreCase(type)) { //$NON-NLS-1$
            javaGenerator = new MixedClientGenerator(getClientProject());
        } else if ("ANNOTATEDMAPPER".equalsIgnoreCase(type)) { //$NON-NLS-1$
            javaGenerator = new AnnotatedClientGenerator(getClientProject());
        } else if ("MAPPER".equalsIgnoreCase(type)) { //$NON-NLS-1$
            javaGenerator = new JavaMapperGenerator(getClientProject());
        } else {
            javaGenerator = (AbstractJavaClientGenerator) ObjectFactory
                    .createInternalObject(type);
        }

        return javaGenerator;
    }

打开其中一个生成器，比如JavaMapperGenerator

    @Override
    public List<CompilationUnit> getCompilationUnits() {
        //
        addCountByExampleMethod(interfaze);
        addDeleteByExampleMethod(interfaze);
        addDeleteByPrimaryKeyMethod(interfaze);
        addInsertMethod(interfaze);
        addInsertSelectiveMethod(interfaze);
        addSelectByExampleWithBLOBsMethod(interfaze);
        addSelectByExampleWithoutBLOBsMethod(interfaze);
        addSelectByPrimaryKeyMethod(interfaze);
        addUpdateByExampleSelectiveMethod(interfaze);
        addUpdateByExampleWithBLOBsMethod(interfaze);
        addUpdateByExampleWithoutBLOBsMethod(interfaze);
        addUpdateByPrimaryKeySelectiveMethod(interfaze);
        addUpdateByPrimaryKeyWithBLOBsMethod(interfaze);
        addUpdateByPrimaryKeyWithoutBLOBsMethod(interfaze);
        //
    }

IntrospectedTableMyBatis3SimpleImpl

    protected AbstractJavaClientGenerator createJavaClientGenerator() {
        if (context.getJavaClientGeneratorConfiguration() == null) {
            return null;
        }

        String type = context.getJavaClientGeneratorConfiguration()
                .getConfigurationType();

        AbstractJavaClientGenerator javaGenerator;
        if ("XMLMAPPER".equalsIgnoreCase(type)) { //$NON-NLS-1$
            javaGenerator = new SimpleJavaClientGenerator(getClientProject());
        } else if ("ANNOTATEDMAPPER".equalsIgnoreCase(type)) { //$NON-NLS-1$
            javaGenerator = new SimpleAnnotatedClientGenerator(getClientProject());
        } else if ("MAPPER".equalsIgnoreCase(type)) { //$NON-NLS-1$
            javaGenerator = new SimpleJavaClientGenerator(getClientProject());
        } else {
            javaGenerator = (AbstractJavaClientGenerator) ObjectFactory
                    .createInternalObject(type);
        }

        return javaGenerator;
    }

打开其中一个生成器，比如SimpleJavaClientGenerator

    @Override
    public List<CompilationUnit> getCompilationUnits() {
        //
        addDeleteByPrimaryKeyMethod(interfaze);
        addInsertMethod(interfaze);
        addSelectByPrimaryKeyMethod(interfaze);
        addSelectAllMethod(interfaze);
        addUpdateByPrimaryKeyMethod(interfaze);
        //
    }

至此，找到xxxSelective方法没有生成的原因。

mybatis generator 生成selective mapper方法

mybatis generator targetruntime为MyBatis3Simple，不会生成xxxSelective mapper方法。
