orchestration vs choreography,编排vs编制(协同)

服务化架构中,orchestration vs choreography是两个容易混淆的概念。orchestration是编排,中心化地控制相关服务。choreography是协同,服务之间通过去中心化的方式交互(例如订阅某个消息topic)。

不管是微服务还是SOA,都会涉及到2个容易混淆的概念:orchestration vs choreography。orchestration(编排)和choreography(协同,这是我喜欢的翻译)。

概念

这2个概念容易混淆的原因,在于中文翻译太坑爹了,什么编排、编制,让人摸不着头脑。直接看英文解释就很好理解了。

orchestration 管弦乐编曲 an arrangement of events that attempts to achieve a maximum effect;

choreography 舞蹈编排 the representation of dancing by symbols as music is represented by notes


图片来源

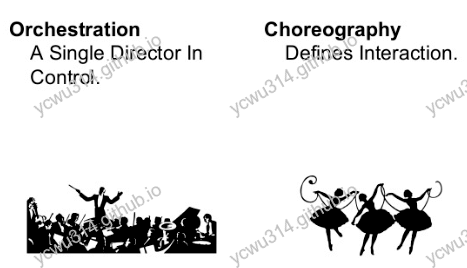

管弦乐有一个总指挥,引导各个乐器手怎么演奏,这是orchestration(编排)。 芭蕾舞表演者根据音乐节奏就可以翩翩起舞,这是choreography(协同)。

stackoverflow上有个关于二者区别很好的回答 Orchestration vs. Choreography

Service orchestration represents a single centralized executable business process (the orchestrator) that coordinates the interaction among different services. The orchestrator is responsible for invoking and combining the services. The relationship between all the participating services are described by a single endpoint (i.e., the composite service). The orchestration includes the management of transactions between individual services. Orchestration employs a centralized approach for service composition.

orchestration是中心化的控制流程。关联服务的关系由中心化节点描述。

Service choreography is a global description of the participating services, which is defined by exchange of messages, rules of interaction and agreements between two or more endpoints. Choreography employs a decentralized approach for service composition.

choreography是去中心化的方式,服务之间的交互通过消息交换实现。

二者的区别:

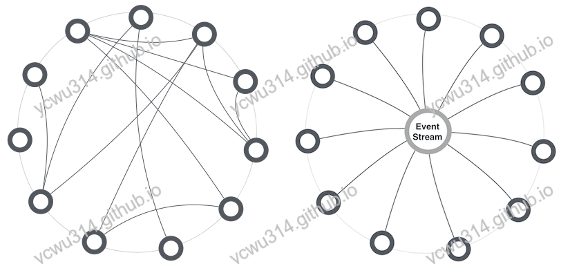

The choreography describes the interactions between multiple services, where as orchestration represents control from one party’s perspective.


图片来源

例子

新注册一个用户,客户服务(customer service)要通知积分服务(loyalty points service)初始化记录、通知邮政服务(post service)发送新客礼包、发送欢迎邮件(email service)。Orchestration和choreography风格的实现分别如下:


图片来源

Orchestration: 由customer service作为中心服务,分别调用其他3个服务。如果发生异常,customer service会感知并且做出回滚或者补偿操作。

Choreography:customer service向topic发送“customer create event”,其他3个服务订阅这个topic,收到消息后执行各自的操作。这些服务是否执行失败,customer service并不知道;失败后如何操作,也不知道。需要更多的监控和异常协调。

通过上面的例子,可以看到Orchestration中心化地控制业务,会产生服务中心大脑。Choreography去中心地协调业务,降低业务耦合,但是会导致业务流程分散,需要强大的监控和异常协调机制补偿,技术复杂度更高。

总结

orchestration vs choreography要怎么选择呢? No silver bullet。 我的经验是,关键的、少量的、核心的、复杂的、一致性要求高的业务流程,更适合Orchestration方式。非关键的、简单的、一致性要求不高的业务流程,用Choreography即可。
